Brand Name : trusTec
Model Number : BLDC-15-8A
Certification : CE
Place of Origin : Changzhou, China
MOQ : 200 pcs
Price : Negotiable (FOB/CNF/CIF)
Payment Terms : T/T, L/C
Supply Ability : 100,000 pcs per month
Delivery Time : 15 days fresh products after order confirmation.
Packaging Details : Standard carton packing, foam board inside for protection.
Product : BLDC Motor
Frame Size : Ф57MM
Enclosure Type : TEAO(Totally Enclosed Air Over)
Supply Voltage : 24V
Thermal Overload : Equipped With An Automatic Thermal Overload
Current : 0.2A
Phase : Single Phase
Output Power : 15W
Mounting : Stud Mounting All Angel
Rated Speed : 1300RPM
Bearings : Ball Bearing
Poles : 4P
Mounting Orientation : All Angle
Body Length : 76.5MM
Max. Ambient Temperature : 40℃/104℉
Shaft Diameter : Φ8MM
Insulation Class : Class B
Shaft Length : 61MM
Rotation : CW
Lead Length : 300MM
![]() |

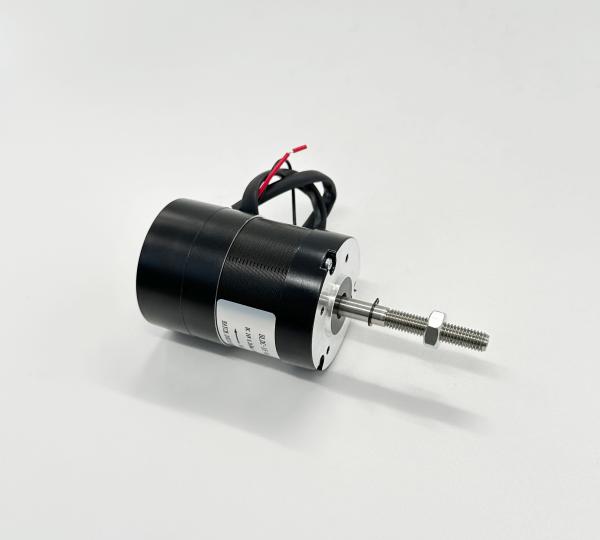

Brushless DC Motor - 24V 1300RPM 0.11Nm 15W 0.2A Ф57x76.5mm Images |
